Seamless pipes are the preferred choice for high-pressure, high-temperature, and critical process applications in oil & gas — but they cost more than welded pipe. Understanding when seamless is required versus when ERW is acceptable can save significant material cost while ensuring safety and compliance.
In the UAE’s thriving energy sector, from Abu Dhabi’s offshore fields to Dubai’s refineries and Sharjah’s petrochemical plants, seamless pipe UAE demand remains strong. As trusted seamless pipe suppliers UAE, Naftaar International FZE helps contractors and operators select the right SMLS pipes for maximum performance and cost efficiency.

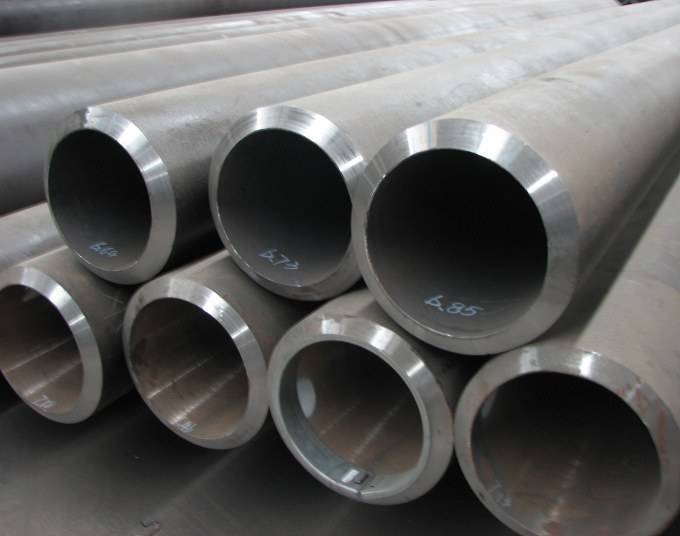

What is a Seamless Pipe?
A seamless pipe (often abbreviated as SMLS pipe) is a tubular product manufactured from a solid steel billet without any longitudinal weld seam. Unlike welded pipes, seamless pipes offer uniform strength and structure throughout the entire circumference, making them ideal for demanding environments.
The primary manufacturing process is hot extrusion or the Mannesmann piercing method. In hot extrusion, a solid round steel billet is heated to a high temperature (typically above recrystallization point) and then forced through a die using extreme pressure from a ram. A piercing mandrel creates the hollow interior while the material flows uniformly.
This process results in excellent grain structure, superior mechanical properties, and the ability to produce thick-walled pipes that are difficult to manufacture through welding. Seamless pipes eliminate the risk of weld-related defects such as porosity, inclusions, or weak zones, providing higher reliability under pressure.
Seamless vs ERW vs EFW – Technical Differences
Understanding SMLS pipe vs welded pipe is crucial for procurement decisions in the UAE.
– Seamless (SMLS): No weld seam. Manufactured from billet via piercing/extrusion/rolling. Offers uniform wall thickness, higher pressure resistance (up to 20% better than ERW in some cases), and excellent corrosion resistance. More expensive but preferred for critical service.
– ERW (Electric Resistance Welded): Produced from steel coils or plates formed into a cylinder and welded using high-frequency electrical resistance. Cost-effective, good for low-to-medium pressure, excellent dimensional accuracy, and surface finish. Suitable for many structural and non-critical applications.
– EFW (Electric Fusion Welded): Uses filler material and fusion welding (often for larger diameters). Stronger than standard ERW in high-pressure applications but still has a weld zone that requires careful inspection.
Key Advantages of Seamless Pipes:
– Higher pressure and temperature tolerance
– No weld imperfections or seam corrosion risk
– Better for sour service (NACE MR0175) and high-integrity applications
– More isotropic mechanical properties
Welded pipes (ERW/EFW) are more economical and available in larger diameters but may require additional NDT and derating in critical services.
When is Seamless Pipe Required?
Seamless pipes are mandatory or strongly recommended in several scenarios common in the UAE market:
– High Pressure & High Temperature: Boilers, superheaters, and process piping (e.g., ASTM A106 applications).
– Critical Service: Oil & gas transmission lines, offshore platforms, refineries, and chemical plants where failure is not an option.
– Sour Service: Environments containing H₂S — requires NACE MR0175 compliant seamless pipes.
– Thick Walls & Small Diameters: Where forming plates for welding is impractical.
– High Integrity Projects: QatarEnergy, ADNOC, and other regional specifications often mandate seamless for certain classes.
Using welded pipe where seamless is specified can lead to project rejection, delays, or safety issues. Always consult project specifications and your seamless pipe suppliers UAE early.
Standards for Seamless Pipe
Several international standards govern seamless pipes used in the UAE:
– API 5L: For line pipe in petroleum and natural gas industries. Covers PSL1 and PSL2, grades like B, X52, X60, X65. Widely used for pipelines.
– ASTM A106: Seamless carbon steel pipe for high-temperature service. Grades A, B, C — very common in refineries and power plants.
– ASTM A312: Seamless, welded, and heavily cold worked austenitic stainless steel pipes.
– ASTM A335: Seamless ferritic alloy-steel pipe for high-temperature service (P5, P9, P11, P22, P91 grades).
Additional standards include ASTM A53, A333 (low temperature), and ASME B36.10/B36.19 for dimensions. All pipes supplied by Naftaar come with full 3.1 Material Test Certificates (MTC) ensuring compliance.
Available Grades
Naftaar International FZE stocks and supplies a wide range of seamless pipe grades suitable for UAE projects:
– Carbon Steel Seamless: API 5L Gr. B, ASTM A106 Gr. B/C, ASTM A53.
– Alloy Steel Seamless: ASTM A335 P11, P22, P91 for high-temperature creep resistance.
– Stainless Steel Seamless: ASTM A312 TP304/304L, TP316/316L, Duplex, Super Duplex for corrosive environments.
– Low-Temperature Service: ASTM A333 Gr. 6.
Sour service grades with NACE compliance are also readily available.
Sizes and Schedules Available
Seamless pipes are available in a broad range:
– Outside Diameter (OD): 1/2” to 36” (and larger on request)
– Wall Thickness: Schedules 10, 20, 40, STD, 80, XS, 120, 160, XXS
– Length: 6m, 12m, or custom cut-to-length
Common combinations include 6” Sch 40, 8” Sch 80, and heavy-wall XXS pipes for high-pressure lines. Custom sizes and heavy walls are a specialty of reliable seamless pipe suppliers UAE.
Why Choose Naftaar International FZE as Your Seamless Pipe Supplier in the UAE?
With years of experience serving the UAE, Oman, and GCC energy sector, Naftaar International FZE is your trusted partner for high-quality seamless pipe UAE. We maintain strategic stock, offer competitive pricing, fast delivery to Abu Dhabi, Dubai, Sharjah, and Jebel Ali, and full technical support for material selection.
Whether you need API 5L seamless line pipe, ASTM A106 boiler tubes, or exotic alloy seamless pipes — we deliver with complete documentation and traceability.
Ready to optimise your project with the right seamless pipes?
Contact Naftaar International FZE today for competitive quotes, technical datasheets, and expert consultation.
Naftaar International FZE – Reliable Seamless Pipe Suppliers in UAE
